Discharge Characteristics (77˘XF/25˘XC) |

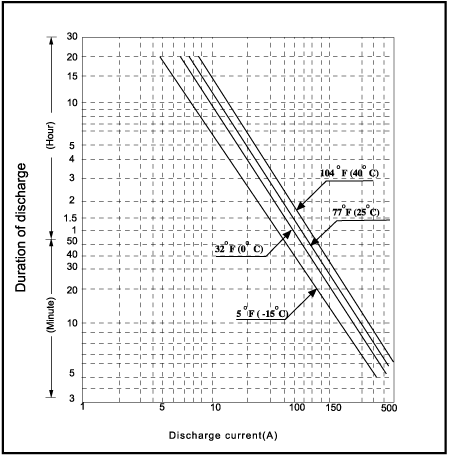

Duration of Discharge vs. Discharge Current |
Characteristics |
|
Capacity |
10 hour rate (15A) | 150AH | |
| 5 hour rate (25.5A) | 127.5AH | ||
| 1 hour rate (97.5A) | 97.5AH | ||
| 15 min rate(262.4A) | 65.6AH | ||
| Capacity Affected by
Temperature (20 hour rate) |
104˘XF (40˘XC) | 102% | |
| 77˘XF (25˘XC) | 100% | ||
| 32˘XF (0˘XC) | 85% | ||
| 5˘XF (-15˘XC) | 65% | ||
| Self Discharge ( 77˘XF / 25˘XC) |
Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
| Max. Discharge
Current (77˘XF / 25˘XC) |
450A | ||
| Terminal | Standard | L11 | |
| Optional | |||
|
Charging |
Cycle | 2.45~2.48V/ 77˘XF (25˘XC)<30A | |
| Float | 2.27~2.30V/ 77˘XF (25˘XC) | ||
Constant Wattage Discharge (Watts/battery@25˘XC) |
| Cut-Off Voltage | 15' | 30' | 1H | 2H | 3H | 4H | 5H | 6H | 8H | 10H |
| 1.90V | 69.0 | 62.4 | 51.0 | 35.7 | 28.5 | 24.0 | 21.0 | 18.9 | 15.6 | 13.5 |
| 1.87V | 87.6 | 73.2 | 57.0 | 39.6 | 31.5 | 26.4 | 22.8 | 20.4 | 16.5 | 14.1 |
| 1.83V | 105.0 | 87.0 | 64.5 | 43.8 | 34.2 | 28.5 | 24.3 | 21.6 | 17.4 | 14.7 |
| 1.80V | 117.0 | 94.8 | 69.0 | 45.9 | 36.0 | 30.0 | 25.5 | 22.5 | 18.0 | 15.0 |
| 1.75V | 136.8 | 105.0 | 75.0 | 48.6 | 37.2 | 30.3 | 25.8 | 22.5 | 18.0 | 15.0 |
| 1.70V | 153.6 | 115.2 | 112.5 | 72.9 | 55.8 | 30.3 | 25.8 | 22.5 | 18.0 | 15.0 |
Discharge Characteristics (77˘XF/25˘XC) |
Duration of Discharge vs. Discharge Current |
