Discharge Characteristics (77˘XF/25˘XC) |

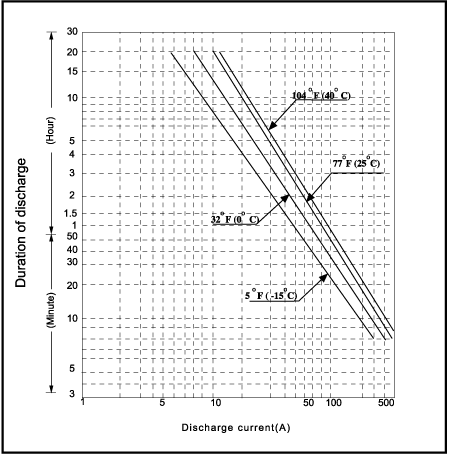

Duration of Discharge vs. Discharge Current |
Characteristics |
|
Capacity |
10 hour rate (20A) | 200AH | |
| 5 hour rate (34A) | 170AH | ||
| 1 hour rate (120A) | 120AH | ||
| 15 min rate(350A) | 87.5AH | ||
| Capacity Affected by
Temperature (20 hour rate) |
104˘XF (40˘XC) | 102% | |
| 77˘XF (25˘XC) | 100% | ||
| 32˘XF (0˘XC) | 85% | ||
| 5˘XF (-15˘XC) | 65% | ||
| Self Discharge ( 77˘XF / 25˘XC) |
Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
| Max. Discharge
Current (77˘XF / 25˘XC) |
600A | ||
| Terminal | Standard | L11 | |
| Optional | |||
|
Charging |
Cycle | 2.42~2.48V/ 77˘XF (25˘XC)<50A | |
| Float | 2.27~2.30V/ 77˘XF (25˘XC) | ||
Constant Wattage Discharge (Watts/battery@25˘XC) |
| Cut-Off Voltage | 15' | 30' | 1H | 2H | 3H | 4H | 5H | 6H | 8H | 10H |
| 1.90V | 92.0 | 83.2 | 68.0 | 47.6 | 38.0 | 32.0 | 28.0 | 25.2 | 20.8 | 18.0 |
| 1.87V | 116.8 | 97.6 | 76.0 | 52.8 | 42.0 | 35.2 | 30.4 | 27.2 | 22.0 | 18.8 |
| 1.83V | 140.0 | 116.0 | 86.0 | 58.4 | 45.6 | 38.0 | 32.4 | 28.8 | 23.2 | 19.6 |
| 1.80V | 156.0 | 126.4 | 92.0 | 61.2 | 48.0 | 40.0 | 34.0 | 30.0 | 24.0 | 20.0 |
| 1.75V | 182.4 | 140.0 | 100.0 | 64.8 | 49.6 | 40.4 | 34.4 | 30.0 | 24.0 | 20.0 |
| 1.70V | 204.8 | 153.6 | 104.0 | 64.8 | 49.6 | 40.4 | 34.4 | 30.0 | 24.0 | 20.0 |
Discharge Characteristics (77˘XF/25˘XC) |
Duration of Discharge vs. Discharge Current |
