Discharge Characteristics (77˘XF/25˘XC) |

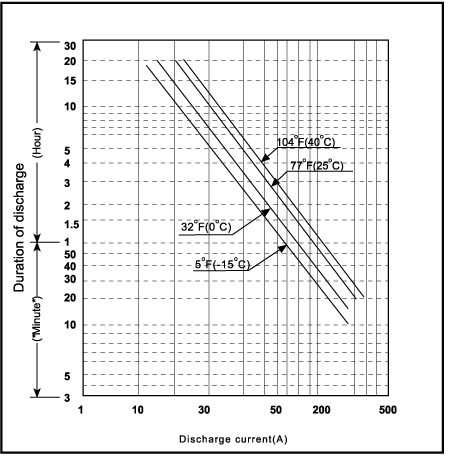

Duration of Discharge vs. Discharge Current |
Characteristics |
|
Capacity |
10 hour rate (30A) | 300AH | |
| 5 hour rate (51A) | 255AH | ||
| 1 hour rate (195A) | 195AH | ||
| 15 min rate(524A) | 131.2AH | ||
| Capacity Affected by
Temperature (20 hour rate) |
104˘XF (40˘XC) | 102% | |
| 77˘XF (25˘XC) | 100% | ||
| 32˘XF (0˘XC) | 85% | ||
| 5˘XF (-15˘XC) | 65% | ||
| Self Discharge ( 77˘XF / 25˘XC) |
Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
| Max. Discharge
Current (77˘XF / 25˘XC) |
900A | ||
| Terminal | Standard | L12 | |
| Optional | |||
|
Charging |
Cycle | 2.42~2.48V/ 77˘XF (25˘XC) | |
| Float | 2.27~2.30V/ 77˘XF (25˘XC) | ||
Constant Wattage Discharge (Watts/battery@25˘XC) |
| Cut-Off Voltage | 15' | 30' | 1H | 2H | 3H | 4H | 5H | 6H | 8H | 10H |
| 1.90V | 138.0 | 124.8 | 102.0 | 71.4 | 57.0 | 48.0 | 42.0 | 37.8 | 31.2 | 27.0 |
| 1.87V | 125.2 | 146.4 | 114.0 | 79.2 | 63.0 | 52.8 | 45.6 | 40.8 | 33.0 | 28.2 |
| 1.83V | 210.0 | 174.0 | 129.0 | 87.6 | 68.4 | 57.0 | 48.6 | 43.2 | 34.8 | 29.4 |
| 1.80V | 234.0 | 189.6 | 138.0 | 91.8 | 72.0 | 60.0 | 51.6 | 45.0 | 36.0 | 30.0 |
| 1.75V | 273.6 | 210.0 | 150.0 | 97.2 | 74.4 | 60.6 | 51.6 | 45.0 | 36.0 | 30.0 |
| 1.70V | 307.2 | 230.4 | 156.0 | 97.2 | 74.4 | 60.6 | 51.6 | 45.0 | 36.0 | 30.0 |
Discharge Characteristics (77˘XF/25˘XC) |
Duration of Discharge vs. Discharge Current |
