Chargers for Ni-MH, Ni-CD, Li-ion and Li-polymer Batteries
Best to view PDF files with Acrobat Reader

Ni-MH Charger
Ni-MH
Smart Charger
Li-ion RCRV3 Charger
(True 3.0V)
Li-ion RCR123A Charger
(True 3.0V)
Ni-MH Charger

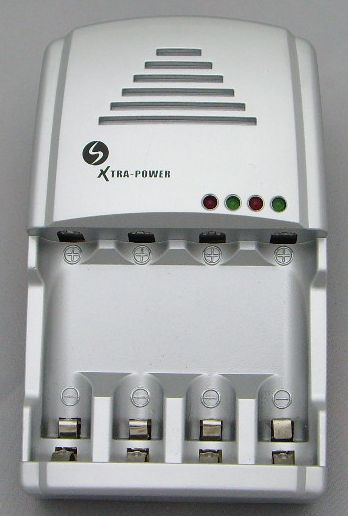

Model No.:
XC051S
Model No.:
XX -PH06S4E-DB

Model No.:
XH-V3-A-DB

Model No.:
X H-123A-3.0A-DB

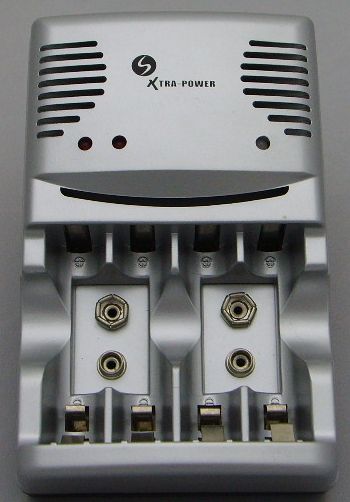

Model No.:
XC02L4GW

Charging current For:
AA :2000mA
AAA :1000mA
4 channels/Ultra-fast charger

Charge 2 or 4pcs
Ni-Mh/Ni-Cd
AA/AAA batteries
Charge 1 pc Li-ion RCRV3 battery,
use PCB to reduce battery voltage
from 3.7V to 3.0V
Charge 1 or 2 pcs Li-ion
RCR123A batteries,
use PCB to reduce
battery voltage
from 3.7V to 3.0V

Output: AA/ 2.8V-135mA
AAA/2.8V-60mA :4 channels
9V/9.8V-17mA :2 channel
Ni-MH/Ni-Cd

Input Voltage:100~240Va.c. (Worldwide)     50/60Hz
                       90-50mA
Input Voltage:100~240Va.c. (Worldwide)     50/60Hz
                       90-50mA
Input Voltage: 12Vd.c. Input Current: 250mA
Input Voltage: 12Vd.c. Input Current: 250mA
Input Voltage: 230Va.c.





Xtra-power Batteries comprise a wide range of battery chargers to cater for the need
of different electronic applicances. Click the below links to get the details of each type of batteries:
